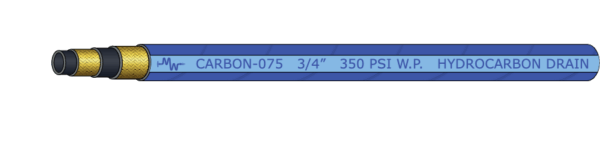

Carbon
Applications & Features
Designed for applications requiring resistance to oil & petroleum based fluids and refining industry during transfer of hydrocarbons.
NOT FOR STEAM SERVICE
Specs
Tube:
Oil resistant nitrile (NBR)
Cover:
Oil, weather, & abrasion resistant Hypalon
Reinforcement:
3/4” & 1” Single ply high-tensile wire braid; 2”, 3”, 4” Multiple plies of textile braid with a helically wrapped wire
Safety Factor:
10 to 1
Temp. Range:
-20°F to 300° F
| Part # | ID | OD | Max WP | Min BP | Weight |
|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | LBS | |
| CARBON-075 | 3/4 | 1.20 | 350 | 3,500 | 0.57 |
| CARBON-100 | 1 | 1.49 | 350 | 3,500 | 0.70 |
