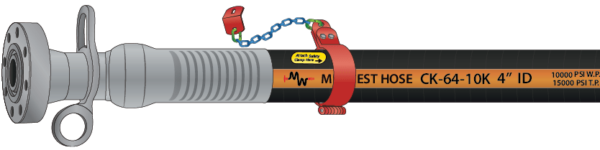

Cement Rotary Hose
Applications & Features
Designed for cementing service or acidizing service on a drilling rig. Used as a flexible connection (instead of pipe) to connect the cementing pump manifold and cementing head.
Specs
Tube:
Nitrile
Cover:
Neoprene/PVC (PVC improves ozone and aging resistance)
Reinforcement:
6 to 8 steel wire spiral layers
Temp. Range:
-40° F to 212° F
| Part # | ID | OD | Max WP | Min BP | Bend Radius | Weight |
|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | |
| CK-32-5K | 2 | 3.76 | 5,000 | 10,000 | 36 | 1.04 |
| CK-48-5K | 3 | 4.96 | 5,000 | 10,000 | 36 | 1.87 |
| CK-56-5K | 3-1/2 | 5.46 | 5,000 | 10,000 | 48 | 0.75 |
| CK-64-5K | 4 | 6.34 | 10,000 | 10,000 | 54 | 0.86 |
| CK-32-10K | 2 | 4.02 | 10,000 | 15,000 | 48 | 1.12 |
| CK-48-10K | 3 | 5.38 | 10,000 | 15,000 | 60 | 1.84 |
| CK-56-10K | 3-1/2 | 5.88 | 10,000 | 15,000 | 64 | 2.37 |
| CK-64-10K | 4 | 6.61 | 10,000 | 15,000 | 72 | 2.80 |
| CKARC-24-10K | 1-1/2 | 2.32 | 10,000 | 15,000 | 19.69 | 4.41 |
| CKARC-32-10K | 2 | 2.83 | 10,000 | 15,000 | 23.62 | 4.41 |
