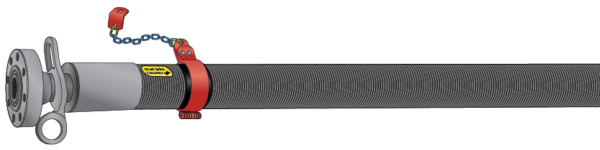

Choke & Kill Armor Hose
Applications & Features
Designed for general choke and kill service. Used as a flexible connection (instead of pipe) to the choke manifold.
Specs
Tube:
Nitrile
Cover:
Stainless steel armor 0.144″ wall, protects against impacts, wear, handling, etc.
Reinforcement:
4, 6, or 8 steel wire spiral layers
Temp. Range:
-20°F to 180°F
| Part # | ID | OD | Max WP | Test Pressure | Bend Radius | Weight | Weight |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | COUPLING | |
| CK-32 Armor | 2 | 3.25 | 5,000 | 7,500 | 13 | 11.1 | 55 |
| CK-48 Armor | 3 | 6.50 | 5,000 | 7,500 | 26 | 20.8 | 117 |
| CK-56 Armor | 3-1/2 | 7.0 | 5,000 | 7,500 | 28 | 23.1 | 151 |
| CK-64 Armor | 4 | 8.0 | 10,000 | 7,500 | 32 | 26.3 | 168 |
| CK-3210K Armor | 2 | 3.25 | 10,000 | 15,000 | 13 | 14.9 | 58 |
| CK-4810K Armor | 3 | 6.5 | 10,000 | 15,000 | 26 | 26.0 | 126 |
| CK-5610K Armor | 3-1/2 | 7.0 | 10,000 | 15,000 | 28 | 29.0 | 171 |
| CK-6410K Armor | 4 | 8.0 | 10,000 | 15,000 | 32 | 32.8 | 188 |
