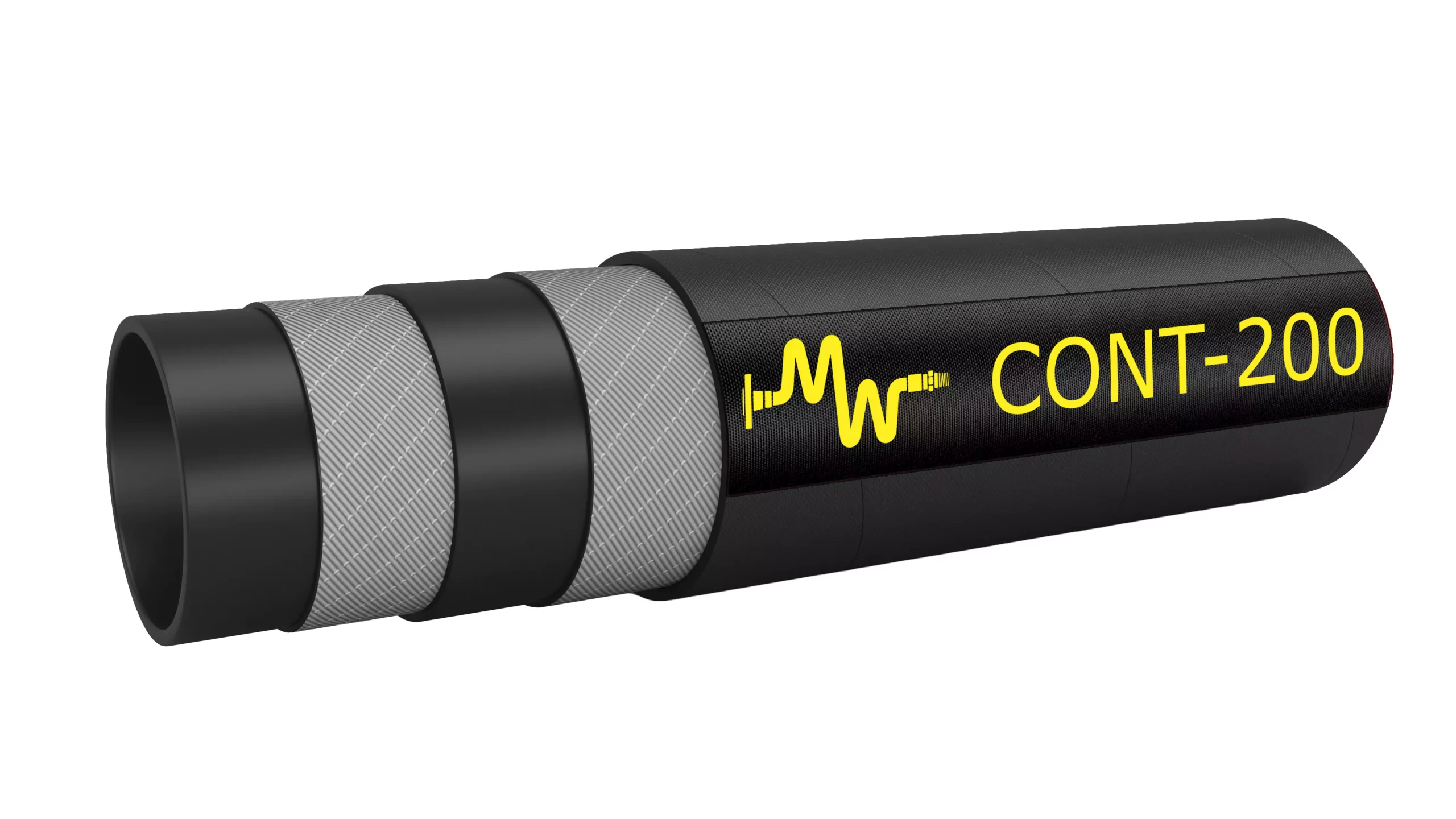

Concrete Pumping Hose (Textile)

Handles plaster, grout, and concrete at the critical flex areas of a concrete boom truck and high pump concrete boom.

Tube:

NR/SBR

Cover:

EPDM/SBR

Reinforcement:

Multiple layers of high tensile textile cords

Safety Factor:

2:1

Temp. Range:

-40°F to 180°F

Part #	ID	OD	Max WP	Min BP	Weight	Length
	INCH	INCH	PSI	PSI	LBS/FT	FEET
CONT-200	2	2.83	1233	2466	1.72	100
CONT-250	2-1/2	3.40	1233	2466	2.33	100
CONT-300	3	3.92	1233	2466	2.79	100
CONT-350	3-1/2	4.69	1233	2466	3.91	100
CONT-400	4	5.02	1233	2466	4.10	100
CONT-450	4-1/2	5.67	1233	2466	5.21	100
CONT-500	5	6.24	1233	2466	5.95	100
