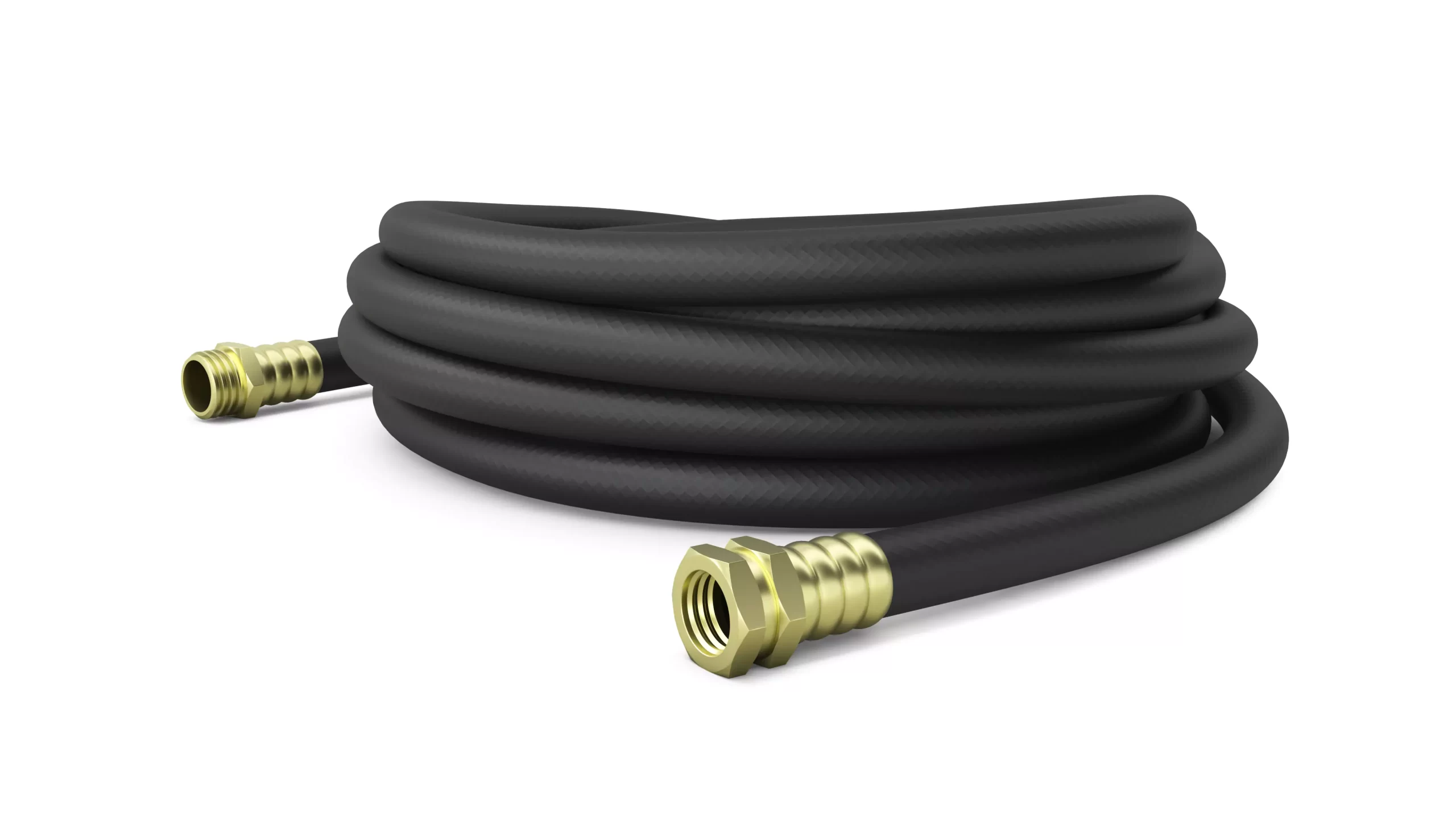

Contractors Water Assemblies
Applications & Features
Designed for water transfer and wash down. Coupled male and female connections with brass garden hose threads.
Specs
Tube:
SBR blend
Cover:
EPDM
Reinforcement:
High tensile nylon braids
Temp. Range:
-40°F to 180°F
| Part # | ID | OD | Max WP | Min BP | Weight | Length |
|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | LBS/FT | FEET | |
| CWH-10X50 | 5/8 | 0.94 | 250 | 750 | 14 | 50 |
| CWH-10X100 | 5/8 | 0.94 | 250 | 750 | 14 | 100 |
| CWH-12X50 | 3/4 | 1.18 | 250 | 750 | 22 | 50 |
| CWH-12X100 | 3/4 | 1.18 | 250 | 750 | 22 | 100 |
