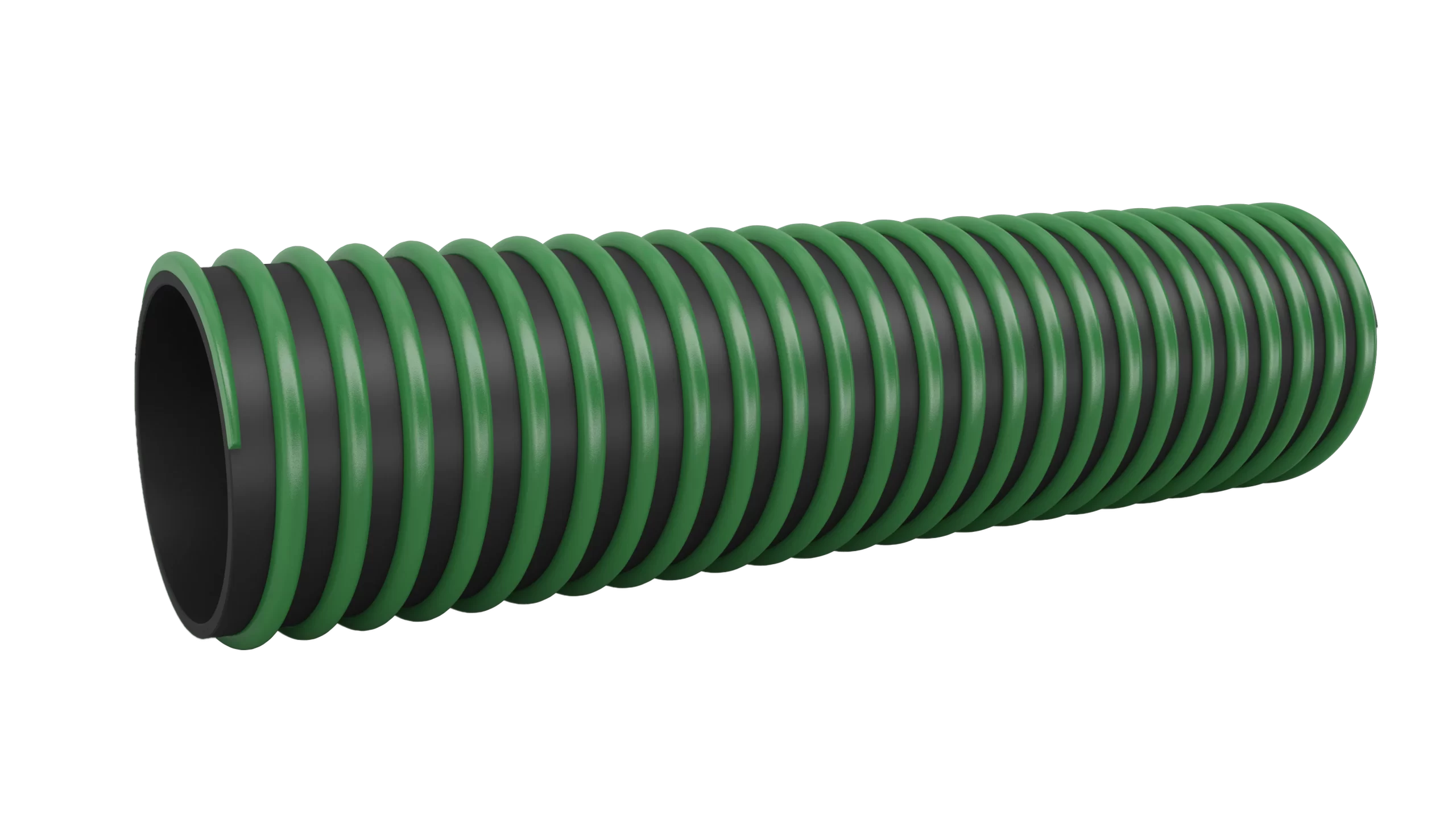

EPDM Suction Hose
Applications & Features
Lightweight, flexible, rugged suction/discharge hose that has good chemical resistance. Excellent for transferring fertilizer solutions, septic solutions and pesticides. Hose remains flexible in sub-zero temperatures. Helix serves as a scuff strip.
Specs
Tube:
EPDM
Cover:
EPDM/Green spiral
Reinforcement:
Green polyethylene helix
Safety Factor:
Minimum 3 to 1
Temp. Range:
-30°F to 140°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| – | 1 | 1.34 | 80 | 28 | 4 | 0.23 | 100 |
| – | 1-1/2 | 1.96 | 60 | 28 | 4 | 0.49 | 100 |
| – | 2 | 2.49 | 60 | 28 | 9 | 0.69 | 100 |
| – | 3 | 3.60 | 50 | 28 | 12 | 1.03 | 100 |
| – | 4 | 4.69 | 45 | 28 | 17 | 1.81 | 100 |
| – | 6 | 6.86 | 35 | 20 | 27 | 3.84 | 100 |
