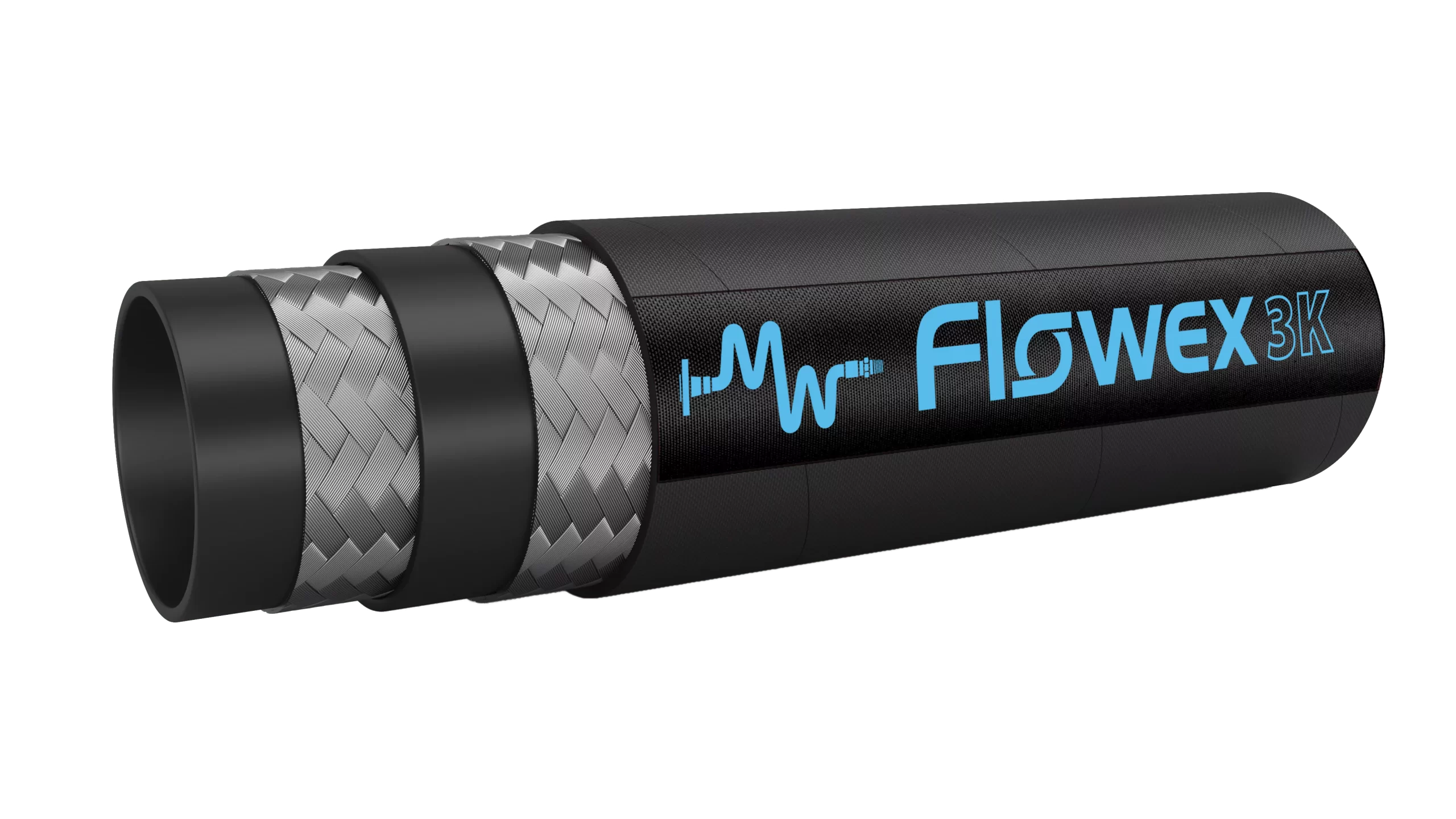

Flowex F3K-TC
Applications & Features
Designed for petroleum base hydraulic fluids and lubricating oils. 3,000 PSI Constant pressure (Isobaric), one, two, or four wire braids. Tough cover, lightweight, flexible design that improves routing capabilities and maximizes efficiency.
Specs
Tube:
Oil resistant synthetic rubber
Cover:
Abrasion, ozone, oil, and weather resistant synthetic rubber
Reinforcement:
One, two, or four wire braids of high tensile steel
Safety Factor:
4:1
Temp. Range:
-40° to 212° F
| Part # | ID | OD/Tolerance | Max WP | Min BP | Bend Radius | Weight |
|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | |
| F3K/TC-04 | 1/4 | 0.492 +/- 0.016 | 3000 | 12000 | 2.0 | 0.12 |
| F3K/TC-06 | 3/8 | 0.626 +/- 0.016 | 3000 | 12000 | 2.6 | 0.19 |
| F3K/TC-08 | 1/2 | 0.760 +/- 0.016 | 3000 | 12000 | 3.5 | 0.25 |
| F3K/TC-12 | 3/4 | 1.106 +/- 0.020 | 3000 | 12000 | 4.7 | 0.57 |
| F3K/TC-16 | 1 | 1.390 +/- 0.020 | 3000 | 12000 | 6.0 | 0.76 |
