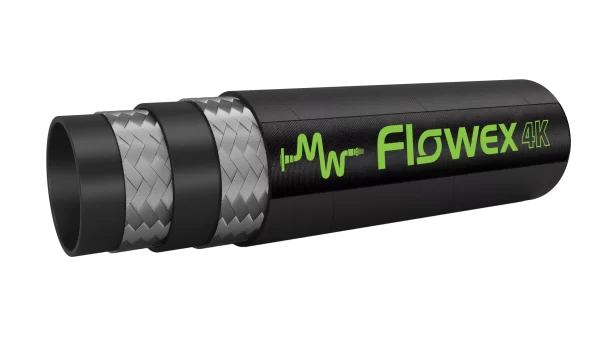

Flowex F4K-TC
Applications & Features
Designed for petroleum base hydraulic fluids and lubricating oils
Specs
Tube:
Oil resistant synthetic rubber
Cover:
Abrasion, ozone, oil, and weather resistant synthetic rubber
Reinforcement:
Two or four wire braids of high tensile steel
Safety Factor:
4:1
Temp. Range:
-40° to 212° F
| Part # | ID | OD/Tolerance | Max WP | Min BP | Bend Radius | Weight |
|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS | |
| F4K/TC-04 | 1/4 | 0.531 +/- 0.016 | 4000 | 16000 | 1.772 | 0.639 |
| F4K/TC-06 | 3/8 | 0.685 +/- 0.016 | 4000 | 16000 | 2.559 | 0.926 |
| F4K/TC-08 | 1/2 | 0.811 +/- 0.016 | 4000 | 16000 | 3.150 | 1.214 |
| F4K/TC-10 | 5/8 | 0.972 +/- 0.020 | 4000 | 16000 | 3.543 | 1.631 |
| F4K/TC-12 | 3/4 | 1.091 +/- 0.020 | 4000 | 16000 | 4.724 | 1.896 |
| F4K/TC-16 | 1 | 1.409 +/- 0.020 | 4000 | 16000 | 5.906 | 2.822 |
| F4K/TC-20 | 1-1/4 | 1.791 +/- 0.024 | 4000 | 16000 | 8.268 | 5.798 |
| F4K/TC-24 | 1-1/2 | 2.106 +/- 0.024 | 4000 | 16000 | 9.843 | 7.385 |
| F4K/TC-32 | 2 | 2.681 ±/- 0.024 | 4000 | 16000 | 13.780 | 10.538 |
