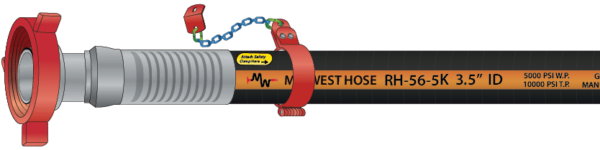

Grade D Hose
Applications & Features
Designed for mud delivery, mud jumper, motion compensator, decoking, and water injection operations on a drilling rig. Used as a flexible connection (instead of pipe) between the standpipe and swivel (rotary) or between the pump and standpipe (vibrator) for pumping mud in drilling and exploration work.
Specs
Tube:
Nitrile
Cover:
Neoprene/PVC (PVC improves ozone and aging resistance)
Reinforcement:
Four or six steel wire spiral layers
Temp. Range:
-20°F to 180°F
| Part # | ID | OD | Max WP | Test Pressure | Bend Radius in WP | Bend Radius in Storage | Weight | Weight |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | INCH | LBS/FT | COUPLING | |
| RH-32-5K | 2 | 3.76 | 5,000 | 7,500 | 36 | 30 | 9.5 | 27 |
| RH-40-5K | 2-1/2 | 4.36 | 5,000 | 7,500 | 36 | 30 | 11.4 | 40 |
| RH-48-5K | 3 | 4.96 | 5,000 | 7,500 | 48 | 30 | 13.6 | 60 |
| RH-56-5K | 3-1/2 | 5.46 | 5,000 | 7,500 | 54 | 30 | 15.5 | 70 |
| RH-64-5K | 4 | 6.34 | 5,000 | 7,500 | 54 | 30 | 24.4 | 85 |
