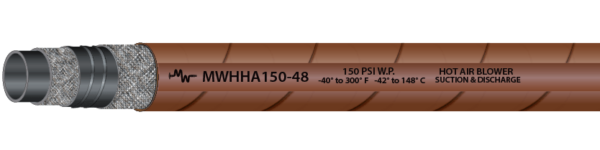

Hot Air Blower Hose
Applications & Features
Designed to convey hot non-oily air from blower or compressor to storage tank in the transfer of dry bulk materials. Can also be used for transferring mild chemicals at ambient temperatures.
Specs
Tube:
EPDM
Cover:
EPDM
Reinforcement:
Multiple textile plies, dual wire helix
Safety Factor:
Minimum 3 to 1
Temp. Range:
-30°F to 300°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| MWHAH150-XX | 3 | 3.64 | 150 | 30 Full Vacuum | 18.0 | 1.63 | 100 |
| MWHAH150-XX | 4 | 4.64 | 150 | 30 Full Vacuum | 24.0 | 2.21 | 100 |
