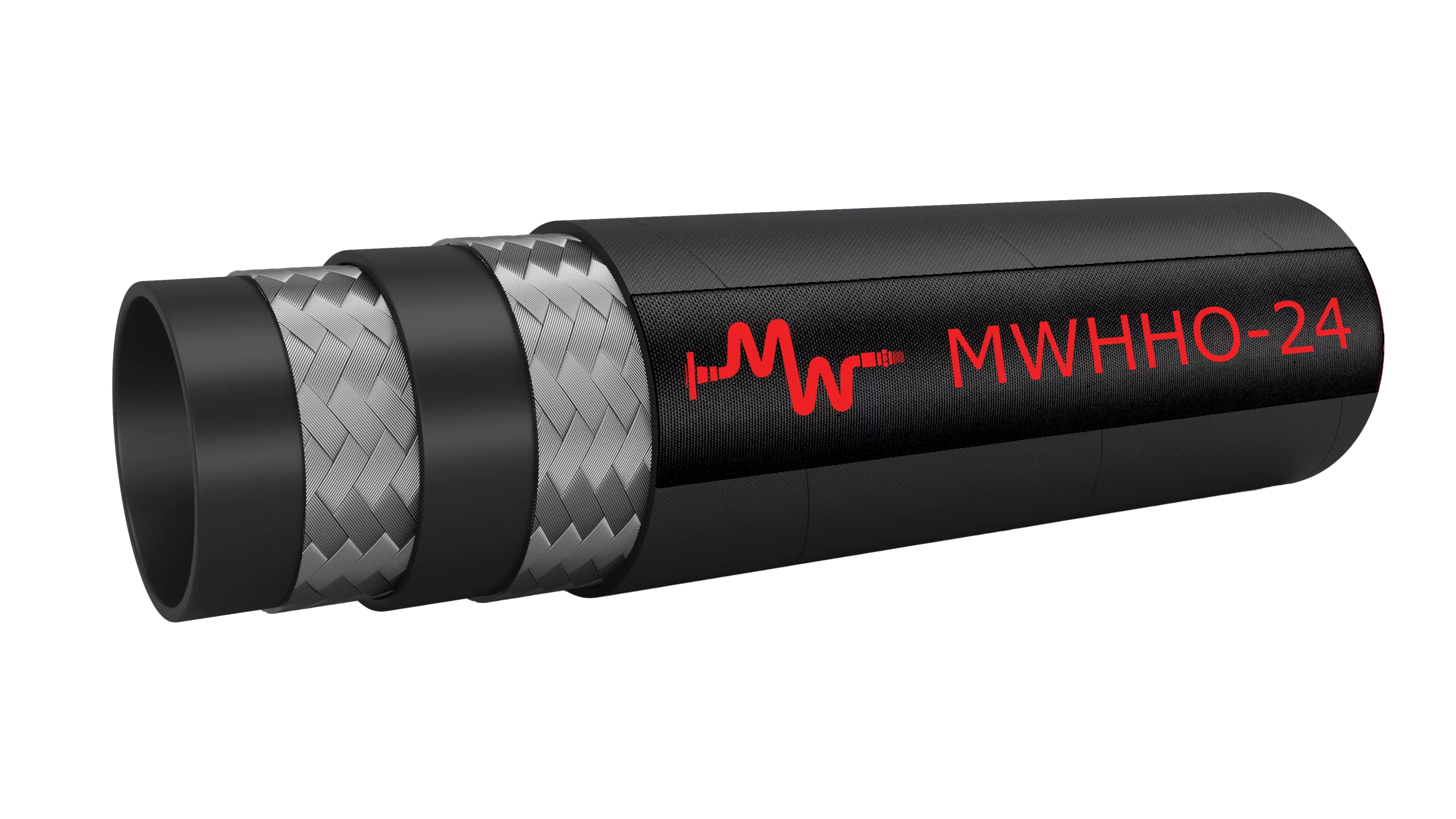

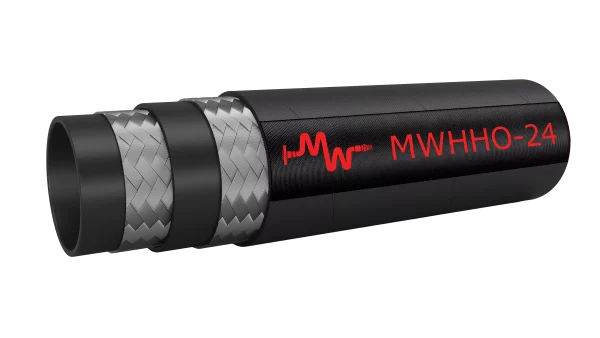

Hot Oiler
Specs
Tube:
Synthetic rubber
Cover:
Synthetic rubber
Reinforcement:
Two high tensile steel wire braids
Temp. Range:
-40°F to 275°F ; 300°F intermittent
| Part # | ID | OD/Tolerance | Max WP | Min BP | Bend Radius | Weight | Fitting Series | Length |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | FEET | ||
| MWHHO-24 | 1-1/2 | 2.142 +/- .059 | 2,250 | 6,900 | 19.7 | 1.59 | 4WB | 150 |
