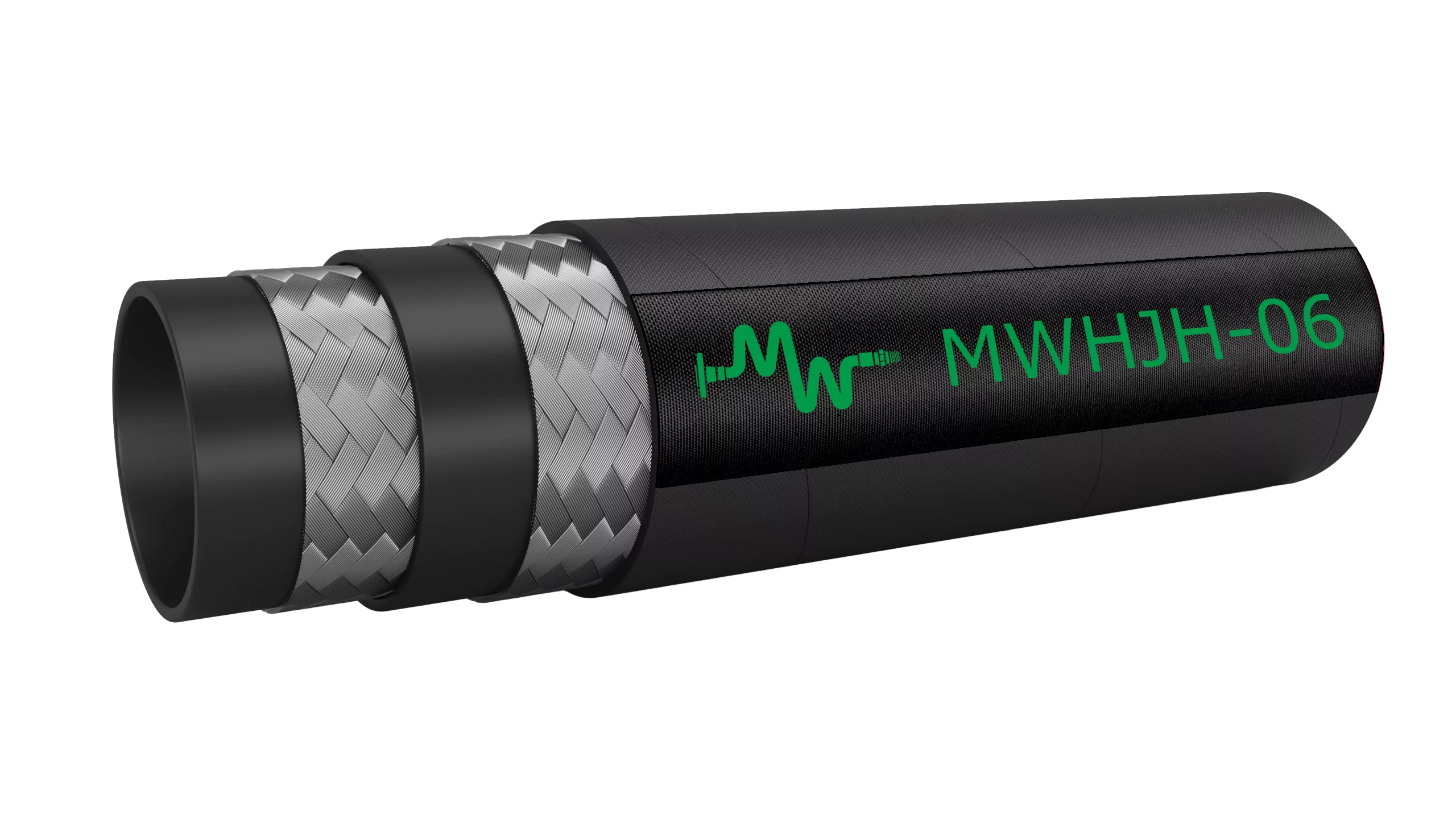

Jack Hose
Applications & Features
Designed for non-impulse applications up to 10,000 PSI with petroleum and water base fluids. Synthetic rubber cover and tube. Two wire braids, offered in ¼” and 3/8”.
Specs
Tube:
Synthetic rubber
Cover:
Synthetic rubber
Reinforcement:
Two high tensile steel wire braids
Temp. Range:
-40°F to 212°F
| Part # | ID | OD/Tolerance | Max WP | Min BP | Bend Radius | Weight | Fitting Series | Length |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | FEET | ||
| MWHJH-04 | 1/4 | 0.594 +/- .024 | 10000 | 20000 | 3.9 | 0.25 | 2WB | 500 |
| MWHJH-06 | 3/8 | 0.750 +/- .026 | 10000 | 20000 | 5.1 | 0.36 | 2WB | 400 |
