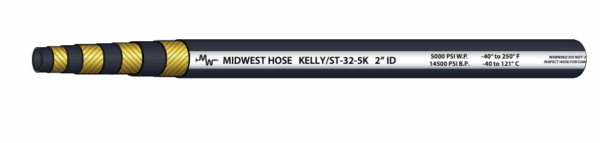

Kelly/ST Hose

Applications & Features

Designed for high-pressure applications, kelly hoses are large-diameter flexible lines that connect the standpipe to the swivel. This flexibility allows the kelly to be raised and lowered while drilling fluid is continuously pumped through the drillstring, a capability that is essential for smooth and efficient drilling processes.

Specs

Tube:

Synthetic rubber, resistant to oil and heat

Cover:

High abrasion resistance super tough cover

Reinforcement:

Four layers of high tensile steel wire spirals

Temp. Range:

-40° F to 250° F

Part # ID OD Max WP Min BP Bend Radius Weight
INCH INCH PSI PSI INCH LBS/FT
2 2.68 5,000 14,500 27.6 2.93
