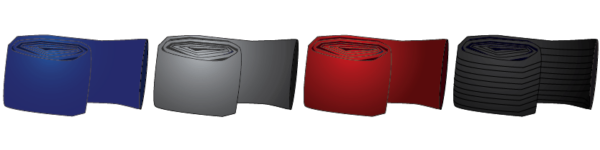

Layflat Discharge Hose

Applications & Features

General purpose hoses for open end discharge. Non-absorbing, mildew proof, and rolls up flat for easy storage and handling. Common in construction, agriculture, irrigation, marine, and rental applications. PVC hoses resistant to oils, grease.

Tube and cover are extruded simultaneously to achieve maximum bonding.

Specs

Tube:

PVC

Cover:

PVC

Reinforcement:

Polyester yarn

Safety Factor:

3:1

Temp. Range:

-5° to 170° F

Part #	Class	ID	Wall Thickness	Max WP	Burst	Length
		INCH	INCH	PSI	PSI	FEET
BD-100, GD-100	Standard	1	0.052	110	195	300
BD-125, GD-125	Standard	1-1/4	0.056	80	195	300
BD-150, GD-150	Standard	1-1/2	0.059	80	195	300
BD-200, GD-200	Standard	2	0.059	80	195	300
BD-250, GD-250	Standard	2-1/2	0.059	65	195	300
BD-300, GD-300	Standard	3	0.063	80	180	300
BD-400, GD-400	Standard	4	0.067	70	165	300
BD-600, GD-600	Standard	6	0.075	60	135	300
BD-800, GD-800	Standard	8	0.087	35	105	300
REDHD-150, YELHD-150	Heavy Duty	1-1/2	0.079	150	450	300
REDHD-200, YELHD-200	Heavy Duty	2	0.087	150	450	300
REDHD-300, YELHD-300	Heavy Duty	3	0.095	150	400	300
REDHD-400, YELHD-400	Heavy Duty	4	0.102	125	400	300
REDHD-600, YELHD-600	Heavy Duty	6	0.119	115	280	300
REDHD-800, YELHD-800	Heavy Duty	8	0.134	70	190	300
