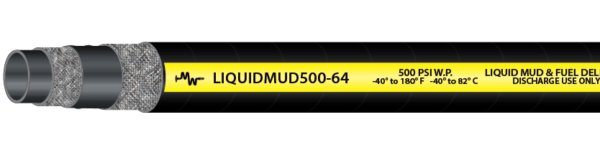

Liquid Mud 500 PSI Hose
Applications & Features
Mud discharge hose designed for petroleum waste, drilling mud, diesel, and water. The standard to transfer liquid mud at high pressures from the mud pump.
Specs
Tube:
Nitrile (NBR)
Cover:
Neoplane (CR)
Reinforcement:
Synthetic textile
Safety Factor:
3:1
Temp. Range:
-40°F to 180°F
| Part # | ID | OD | Max WP | Weight | Length |
|---|---|---|---|---|---|
| INCH | INCH | PSI | LBS/FT | FEET | |
| – | 2 | 2.87 | 500 | 1.67 | 200 |
| – | 3 | 3.86 | 500 | 2.84 | 200 |
| – | 4 | 4.92 | 500 | 4.13 | 200 |
| – | 6 | 7.18 | 500 | 5.50 | 200 |
