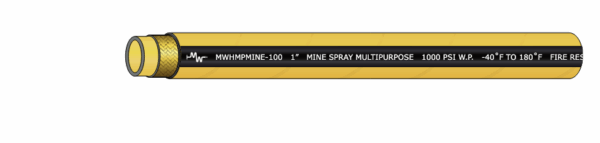

Mine Spray Multipurpose
Applications & Features
Designed for dust control in underground water spray operations.
- Meets MSHA rating IC-84-42
- Yellow cover maximizes visibility in dimly lit areas
Specs
Tube:
Mineral, vegetable, and hydraulic oil resistant synthetic rubber
Cover:
Oil, abrasion, and weather resistant synthetic rubber
Reinforcement:
1 high tensile steel wire braid
Safety Factor:
Minimum 4 to 1
Temp. Range:
-40°F to 212° F
| Part # | ID | OD | Max WP | Min BP | Bend Radius | Weight | Fitting Series | Length |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | FEET | ||
| MWHMPMINE-050 | 1/2 | 0.803 | 2,320 | 9,280 | 2.0 | 6.7 | R7C | 100 |
| MWHMPMINE-075 | 3/4 | 1.045 | 1,523 | 6,090 | 2.0 | 7.4 | R7C | 100 |
| MWHMPMINE-100 | 1 | 1.340 | 1,276 | 5,075 | 3.0 | 10.7 | R7C | 100 |
| MWHMPMINE-125 | 1-1/4 | 1.630 | 914 | 3,625 | 4.0 | 13.4 | R7C | 100 |
| MWHMPMINE-150 | 1-1/2 | 1.890 | 725 | 2,900 | 5.2 | 16.1 | R7C | 100 |
| MWHMPMINE-200 | 2 | 2.440 | 580 | 2,320 | 7.7 | 24.8 | R7C | 100 |
