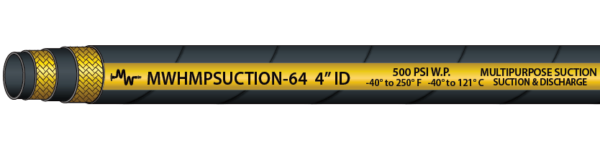

Multipurpose Suction Hose
Applications & Features
• For suction and discharge applications, brine, crude oil, mild chemicals, petroleum waste, sediments, sludge, slurries, water oil field waste recovery, frac tank, and general industrial applications
• Assemblies are made to order
• Multiple end connections available
Specs
Tube:
NBR (synthetic rubber)
Cover:
SBR (synthetic rubber)
Reinforcement:
2 steel wire spirals with one helical wire
Safety Factor:
3:1
Temp. Range:
-40°F to 212°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| MPS/ST-200 | 2 | 2.60 | 600 | 30 | 9.10 | 1.33 | 100 |
| MPS/ST-300 | 3 | 3.78 | 600 | 30 | 15.7 | 3.57 | 100 |
| MPS/ST-400 | 4 | 4.80 | 500 | 30 | 26.6 | 4.48 | 100 |
