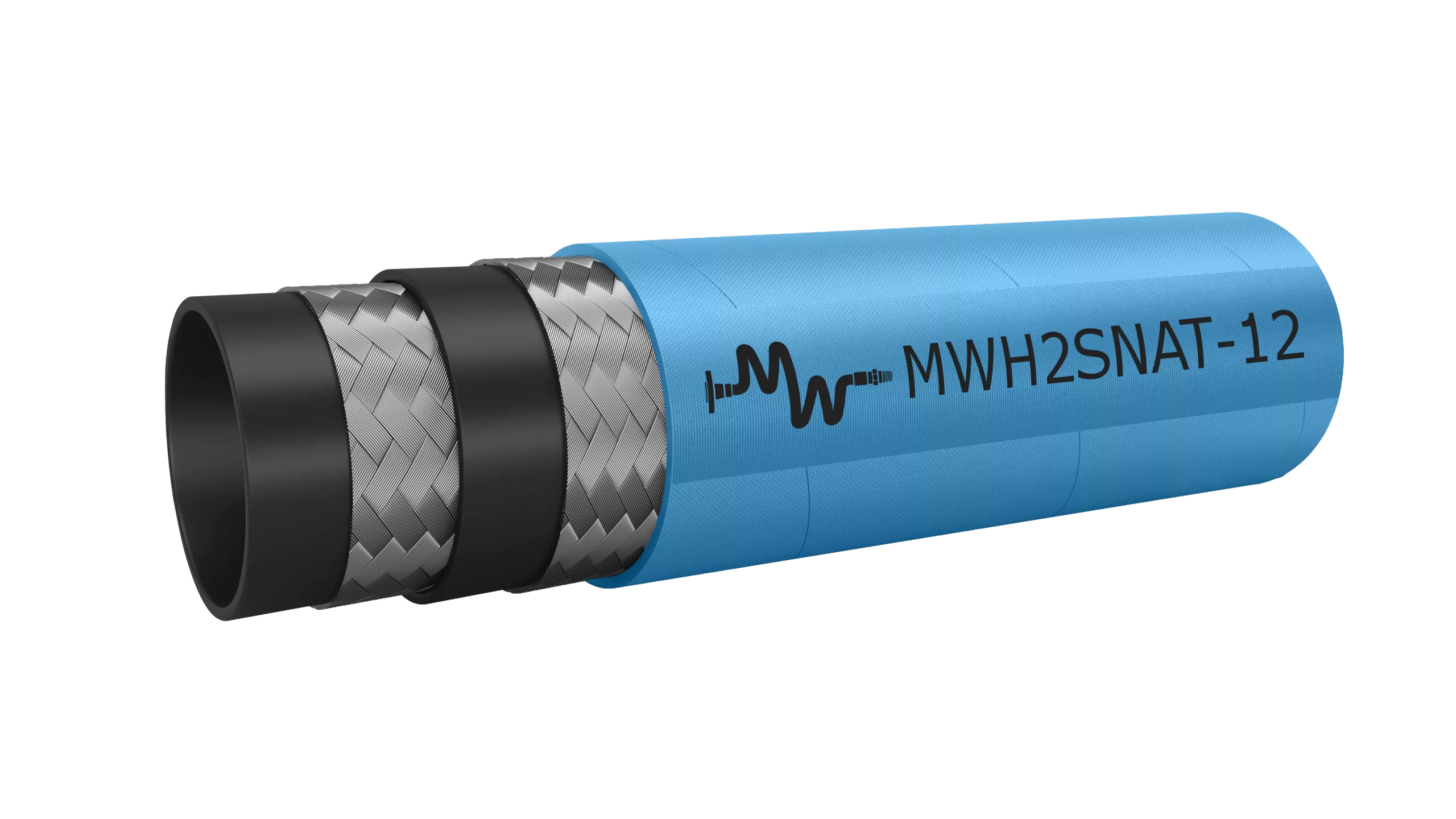

MWH2SNAT
Specs
Tube:
Synthetic rubber
Cover:
Synthetic rubber
Reinforcement:
Two high tensile steel wire braids
Temp. Range:
-40°F to 300°F
| Part # | ID | OD/Tolerance | Max WP | Min BP | Bend Radius | Weight | Fitting Series | Length |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | FEET | ||
| MWH2SNAT-04 | 1/4 | 0.594 +/- .016 | 5,800 | 23,200 | 3.9 | 0.25 | 2WB or 2WC | 500 |
| MWH2SNAT-06 | 3/8 | 0.750 +/- .016 | 4,800 | 19,200 | 5.1 | 0.36 | 2WB or 2WC | 400 |
| MWH2SNAT-08 | 1/2 | 0.880 +/- .024 | 4,000 | 16,000 | 7.1 | 0.44 | 2WB or 2WC | 300 |
| MWH2SNAT-10 | 5/8 | 0.992 +/- .024 | 3,625 | 14,500 | 7.9 | 0.50 | 2WB or 2WC | 200 |
| MWH2SNAT-12 | 3/4 | 1.157 +/- .024 | 3,100 | 12,400 | 9.4 | 0.62 | 2WB or 2WC | 300 |
| MWH2SNAT-16 | 1 | 1.488 +/- .043 | 2,400 | 9,600 | 11.8 | 0.87 | 2WB or 2WC | 200 |
