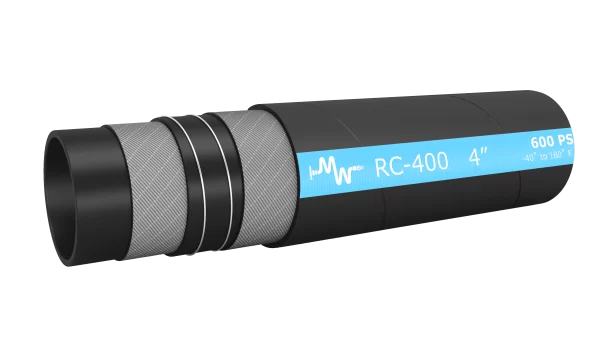

MWHRC600 (Reverse Circulation)
Applications & Features
Designed for use in reverse circulation drilling applications and concrete placement. Superior tube suited for wet abrasive materials. Thick wall construction with multiple plies of reinforcement to resist kinks.
Specs
Tube:
Black synthetic rubber
Cover:
Blue Synthetic Rubber with Spiral Transfer Band
Reinforcement:
Spiral-plied synthetic fabric: 2″ & 3″ ID – Six plies; 4″ & 6″ ID – Eight plies
Safety Factor:
3:1 safety factor. Burst pressure to working pressure
Temp. Range:
-40°F to 180°F
| Part # | ID | OD | Max WP | Min BP | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | FEET | |
| RC-200 | 2 | 3.11 | 600 | 1,800 | 15.95 | 2.37 | 100 |
| RC-300 | 3 | 4.17 | 600 | 1,800 | 24.00 | 3.39 | 200 |
| RC-400 | 4 | 5.35 | 600 | 1,800 | 32.00 | 5.15 | 200 |
| RC-600 | 6 | 7.91 | 600 | 1,800 | 72.00 | 10.66 | 200 |
| RC-800 | 8 | 9.98 | 600 | 1,800 | 00.00 | 15.33 | 80 |
