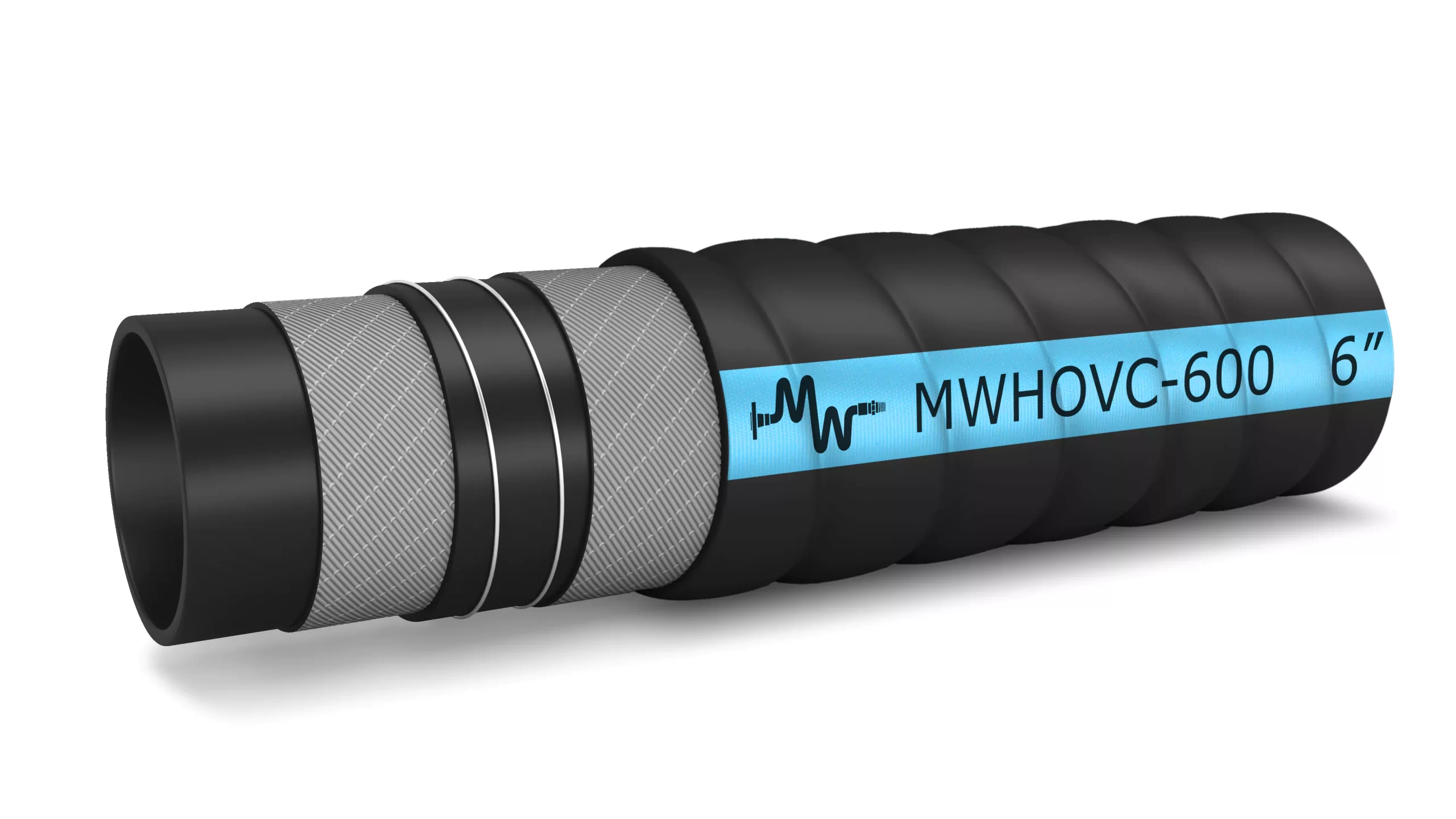

Oilfield Vacuum Corrugated 150 PSI Hose
Applications & Features
Designed for oilfield waste pit recovery service. Ideal for handling crude oil, salt and freshwater, tank bottoms, and drilling mud up to 35% aromatics.Tube is designed to handle diluted solutions of hydrochloric acids and diesel fuels. Corrugated construction makes this hose more flexible.
Specs
Tube:
Nitrile RMA Type C
Cover:
EPDM
Reinforcement:
Multiple textile plies, dual helix wire
Safety Factor:
4:1
Temp. Range:
-40°F to 180°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| – | 1-1/2 | 1.89 | 150 | 30 | 5.9 | 0.79 | 100 |
| – | 2 | 2.48 | 150 | 30 | 9.1 | 1.30 | 100 |
| – | 3 | 3.46 | 150 | 30 | 13.0 | 1.94 | 100 |
| – | 4 | 4.57 | 150 | 30 | 17.1 | 3.04 | 100 |
| – | 6 | 6.73 | 150 | 30 | 25.4 | 5.92 | 100 |
| – | 8 | 8.82 | 150 | 30 | 42.1 | 8.77 | 65 |
