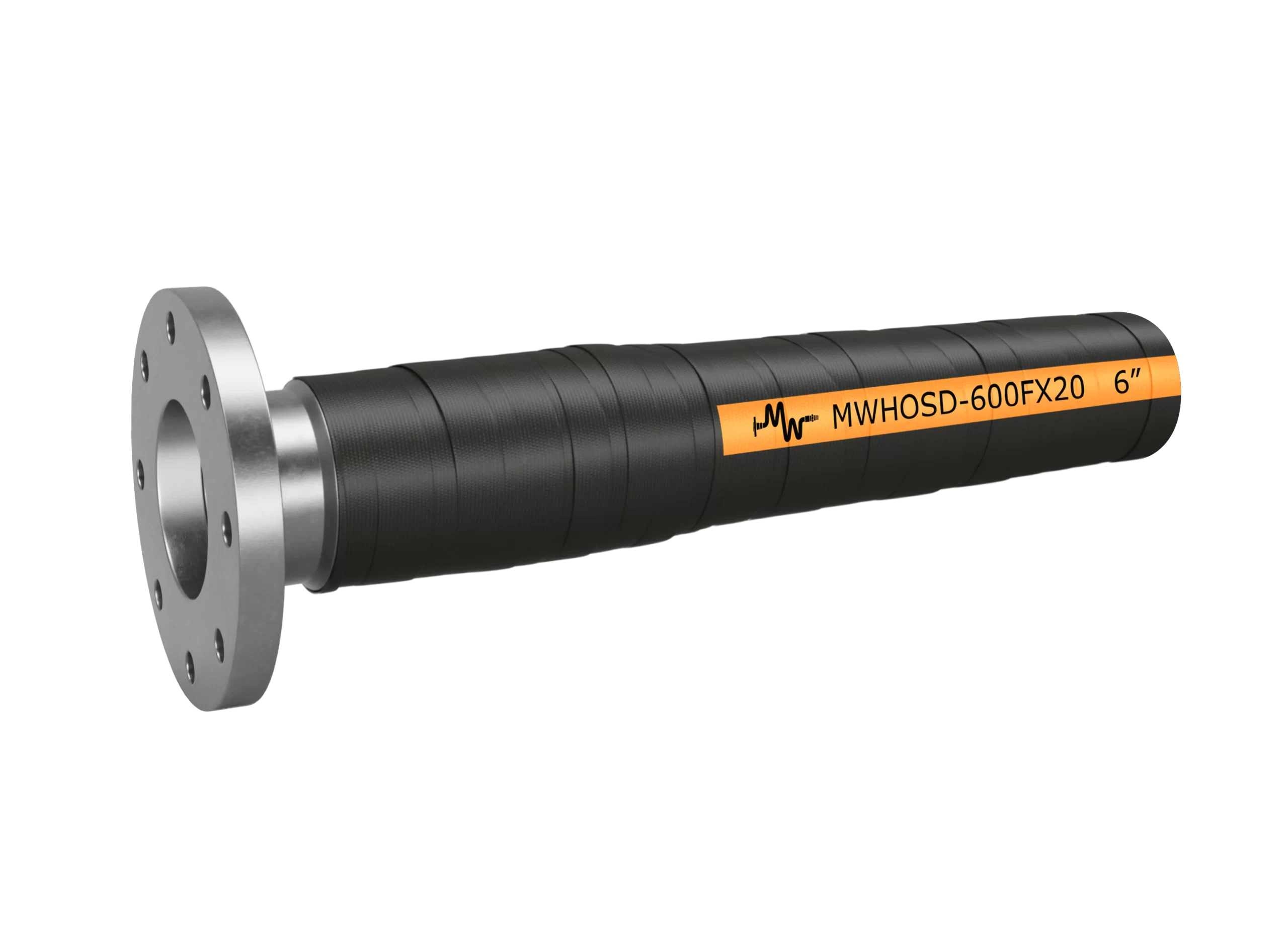

OS&D Tank Truck Hose
Applications & Features
For diesel, ethanol, gasoline, oil and petroleum based products with up to 50% aromatics. Used for heavy duty suction and discharge. Meets USCG and RMA Class II requirements. ANSI 150# carbon steel flanges coated in rubber for saltwater protection.
Specs
Tube:
Nitrile (NBR)
Cover:
Neoprene (CR)
Reinforcement:
Multiple textile plies with heavy guage wire helix
Safety Factor:
4:1
Temp. Range:
-40° to 180° F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Weight |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/10 FT | LBS/20 FT | |
| – | 4 | 5.50 | 250 | 30 | 19 | 100 | 150 |
| – | 6 | 6.89 | 250 | 30 | 36 | 180 | 238 |
| – | 8 | 9.06 | 250 | 30 | 48 | 210 | 375 |
| – | 10 | 11.22 | 250 | 30 | 60 | 350 | 560 |
| – | 12 | 13.56 | 250 | 30 | 72 | 460 | 740 |
| – | 14 | 15.80 | 250 | 30 | 100 | 590 | 845 |
| – | 16 | 17.90 | 250 | 30 | 112 | 760 | 1130 |
