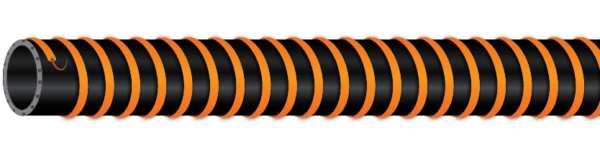

Petroleum Lightweight Gas Drop Hose
Applications & Features
Designed to transfer biodiesel and ethanol blends, gasoline, and other petroleum based products under pressure, gravity flow, or medium suction. Handles up to 50% aromatics.
Has a static conductive tube and copper static wire.
Specs
Tube:
Synthetic rubber
Cover:
Synthetic rubber and orange helix
Reinforcement:
Multiple textile plies and static wire
Safety Factor:
3:1
Temp. Range:
-30° to 150° F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| LWG-32 | 2 | 2.66 | 100 | 23 | 4.0 | 0.87 | 100 |
| LWG-48 | 3 | 3.76 | 100 | 23 | 6.0 | 1.71 | 100 |
| LWG-64 | 4 | 4.79 | 100 | 23 | 8.0 | 2.44 | 100 |
