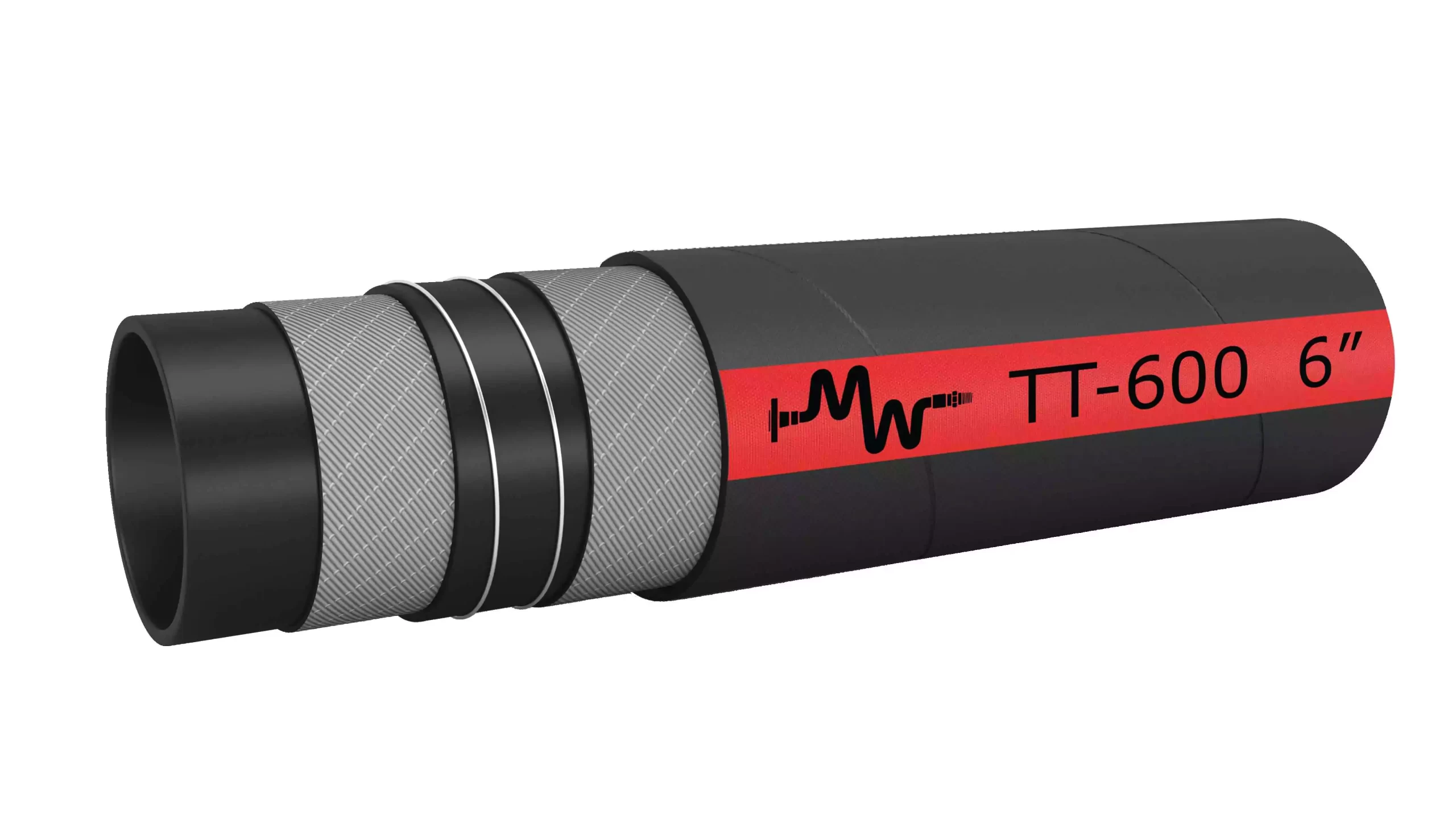

Tank Truck 150 PSI Hose
Applications & Features
Designed to handle diesel, ethanol, gasoline, oil, and petroleum based products that has up to 50% aromatics.
Specs
Tube:
Nitrile (NBR)
Cover:
Chloroprene (CR)
Reinforcement:
Multiple textile plies, dual helix wire
Safety Factor:
4:1
Temp. Range:
-40°F to 180°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| – | 1-1/4 | 1.69 | 150 | 30 | 6.0 | 0.70 | 100 |
| – | 1-1/2 | 1.93 | 150 | 30 | 6.7 | 0.78 | 100 |
| – | 2 | 2.48 | 150 | 30 | 9.8 | 1.10 | 100, 200 |
| – | 2-1/2 | 2.99 | 150 | 30 | 12.2 | 1.46 | 100 |
| – | 3 | 3.50 | 150 | 30 | 15.0 | 1.86 | 100, 200 |
| – | 4 | 4.56 | 150 | 30 | 20.1 | 2.71 | 100, 200 |
| – | 6 | 6.68 | 150 | 30 | 28.0 | 3.94 | 100 |
| – | 8 | 9.00 | 150 | 30 | 40.0 | 8.68 | 100 |
