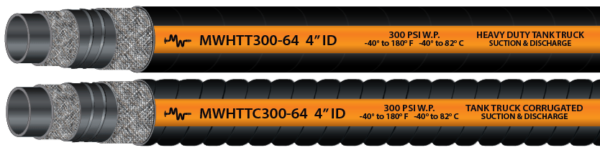

Tank Truck 300 PSI Hose
Applications & Features
Designed to handle diesel, ethanol, gasoline, oil, and petroleum based products that has up to 50% aromatics. Corrugated construction gives the hose greater flexibility.
Specs
Tube:
Nitrile (NBR)
Cover:
Neoprene (CR)
Reinforcement:
Multiple textile plies, dual helix wire
Safety Factor:
3:1
Temp. Range:
-40°F to 180°F
| Part # | Item | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | ||
| TTCHD-XX | Smooth Cover | 2 | 2.56 | 300 | 30 Full Vacuum | 9.1 | 1.40 | 100, 200 |
| TTCHD-XX | Smooth Cover | 3 | 3.62 | 300 | 30 Full Vacuum | 13.2 | 2.36 | 100, 200 |
| TTCHD-XX | Smooth Cover | 4 | 4.70 | 300 | 30 Full Vacuum | 17.3 | 3.45 | 100, 200 |
| TTHD-XX | Corrugated Cover | 6 | 6.89 | 300 | 30 Full Vacuum | 20.0 | 9.52 | 100 |
| TTHD-XX | Corrugated Cover | 8 | 9.06 | 300 | 30 Full Vacuum | 30.0 | 10.20 | 65 |
| TTHD-XX | Corrugated Cover | 10 | 11.22 | 300 | 30 Full Vacuum | 50.0 | 15.0 | 40 |
