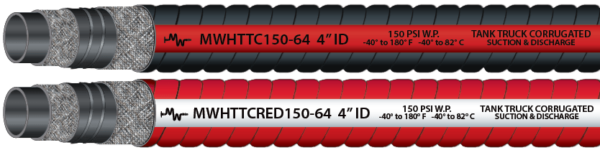

Tank Truck Corrugated 150 PSI Hose
Applications & Features
Designed to handle diesel, ethanol, gasoline, oil, and petroleum based products that has up to 50% aromatics. Corrugated construction gives the hose greater flexibility.
Specs
Tube:
Nitrile (NBR)
Cover:
Neoprene (CR)
Reinforcement:
Multiple textile plies, dual helix wire
Safety Factor:
3:1
Temp. Range:
-40°F to 180°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| TTC-XX | 2 | 2.48 | 150 | 30 Full Vacuum | 4.0 | 1.18 | 100, 200 |
| TTC-XX | 3 | 3.50 | 150 | 30 Full Vacuum | 6.0 | 1.99 | 100, 200 |
| TTC-XX | 4 | 4.56 | 150 | 30 Full Vacuum | 9.0 | 2.66 | 100, 200 |
| TTCRED-XX | 6 | 6.75 | 150 | 30 Full Vacuum | 8.0 | 4.17 | 100 |
| TTCRED-XX | 8 | 8.81 | 150 | 30 Full Vacuum | 20.0 | 6.02 | 65 |
| TTCRED-XX | 10 | 11.02 | 150 | 30 Full Vacuum | 40.0 | 13.92 | 40 |
