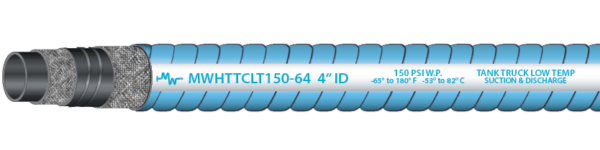

Tank Truck Corrugated Low Temp 150 PSI Hose
Applications & Features
Designed to handle diesel, ethanol, gasoline, oil, and petroleum based products that has up to 50% aromatics.
Corrugated construction with low temperature makes this our most flexible tank truck hose.
Specs
Tube:
Nitrile (NBR)
Cover:
Neoprene (CR)
Reinforcement:
Multiple textile plies, dual helix wire
Temp. Range:
-65°F to 180°F
| Part # | ID | OD | Max WP | Suction | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | IN./HG | INCH | LBS/FT | FEET | |
| – | 2 | 2.48 | 150 | 30 Full Vacuum | 4.0 | 1.25 | 100 |
| – | 3 | 3.50 | 150 | 30 Full Vacuum | 6.0 | 2.02 | 100 |
| – | 4 | 4.57 | 150 | 30 Full Vacuum | 9.0 | 2.94 | 100 |
