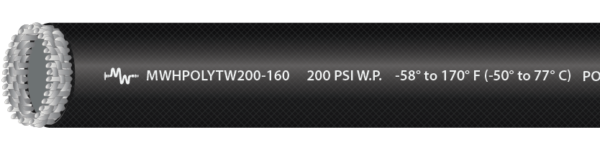

TPU Layflat Hose
Applications & Features
Designed for produced water/ fresh water transfer. Typically used for hydraulic fracture water transfer to replace damaged lines, or to replace broken water main. Manufactured with NSF standard 61 approved materials for use with potable water.
All assemblies are proof tested at working pressure in the USA. We take great deal of pride in promising that only the highest quality product leaves through our doors.
Specs
Reinforcement:
Polyurethane extruded through the weave and circular polyester woven
Safety Factor:
Minimum 2.25:1
Temp. Range:
-40°F to 180°F
| Part # | ID | Wall Thickness | Max WP | Elongation | Expansion | Weight | Length |
|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | at WP | at WP | LBS/FT | FEET | |
| – | 4 | 0.157 | 250 | 1.0% | 3.4% | 667 | 660 |
| – | 6 | 0.161 | 250 | 1.0% | 3.2% | 1,063 | 660 |
| – | 8 | 0.165 | 200 | 0.7% | 3.0% | 1,419 | 660 |
| – | 10 | 0.165 | 200 | 0.5% | 2.8% | 1,894 | 660 |
| – | 12 | 0.196 | 200 | 0.5% | 2.6% | 2,462 | 660 |
| – | 14 | 0.215 | 150 | 1.0% | 5.0% | 2,500 | 528 |
| – | 16 | 0.215 | 125 | 1.0% | 5.0% | 2,850 | 528 |
