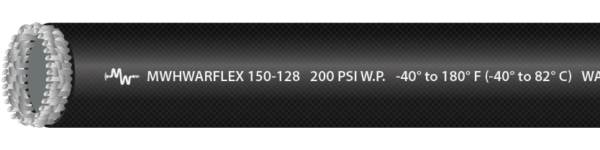

Warflex Through the Weave Hose
Applications & Features
A more economical alternative to our polyurethane layflat hose. Warflex is reinforced with high–tenacity polyester yarn and coated through the weave with a 70% nitrile rubber / 30% PVC blend for good chemical resistance for produced water. Less abrasion resistance and puncture resistance. Custom hose color and branding available on big volume orders.
Specs
Tube:
Nitrile/PVC Blend Extruded Through the Weave
Cover:
Nitrile/PVC Blend Extruded Through the Weave
Reinforcement:
Woven polyester
Safety Factor:
Minimum 2.25 to 1
Temp. Range:
-4° F to 176° F
| Part # | ID | Wall Thickness | Max WP | Weight | Length |
|---|---|---|---|---|---|
| INCH | INCH | PSI | LBS/FT | FEET | |
| – | 2 | 0.079 | 200 | 0.27 | 660, 100, and 50 ft lengths |
| – | 3 | 0.085 | 175 | 0.45 | 660, 100, and 50 ft lengths |
| – | 4 | 0.093 | 150 | 0.64 | 660, 100, and 50 ft lengths |
| – | 6 | 0.112 | 150 | 1.11 | 660, 100, and 50 ft lengths |
| – | 8 | 0.126 | 150 | 1.88 | 660, 100, and 50 ft lengths |
