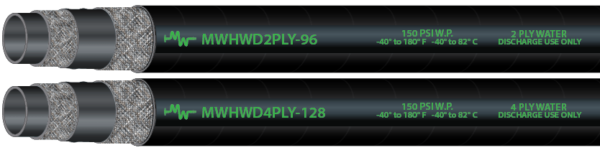

Water Discharge Industrial Hose

Applications & Features

Designed for water discharge in construction, heavy duty equipment rental, and mines and quarries. Soft-wall hose construction provides similar performance to a layflat hose but a higher working pressure and more abrasion resistance.

Specs

Tube:

SBR

Cover:

SBR

Reinforcement:

Synthetic textile

Safety Factor:

3:1

Temp. Range:

-40°F to 180°F

Hose	ID	OD	Max WP	Weight	Length
	INCH	INCH	PSI	LBS/FT	FEET
2 Ply	1-1/2	1.78	150	0.44	100
2 Ply	2	2.28	150	0.62	100
2 Ply	2-1/2	2.78	150	0.75	100
2 Ply	3	3.28	150	0.95	100
2 Ply	4	4.31	150	1.25	100
2 Ply	6	6.31	150	2.68	100
2 Ply	8	8.72	100	3.77	100
2 Ply	10	10.42	80	5.00	100
4 Ply	1-1/2	1.89	250	0.55	100
4 Ply	2	2.39	250	1.00	100
4 Ply	2-1/2	2.89	250	1.33	100
4 Ply	3	3.39	250	1.58	100
4 Ply	4	4.43	250	2.15	100
4 Ply	6	6.43	200	3.25	100
4 Ply	8	8.47	200	4.50	100
4 Ply	10	10.53	150	5.50	100
4 Ply	12	12.53	150	8.00	50
