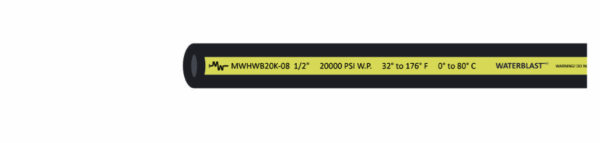

Waterblast
Applications & Features
Designed for a non-polluting, safe method for high pressure waterblasting applications such as industrial cleaning, tank cleaning, and stripping of solutions such as corrosion, paint, and chemical and organic residues.
Specs
Tube:
Sythetic Rubber (CR)
Cover:
Sythetic Rubber (SBR)
Reinforcement:
Four high tensile steel wire spirals
Safety Factor:
2.5:1 safety factor. Burst pressure to working pressure
Temp. Range:
32° to 176° F
| Part # | ID | OD/Tolerance | Max WP | Min BP | Bend Radius | Weight | NPT Stem | Ferrule |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | LBS/FT | |||
| MWHWB10K-08 | 1/2 | 0.96 | 10,000 | 25,000 | 9.50 | 0.61 | WBS08-08MP-16K | WBF10K-08 |
| MWHWB10K-16 | 1 | 1.51 | 10,000 | 25,000 | 13.40 | 1.42 | WBS16-16-10K | WBF10K-16 |
| MWHWB15K-12 | 3/4 | 1.42 | 14,500 | 36,000 | 12.60 | 1.47 | WBS12-12MP-15K | WBF15K-12 |
| MWHWB16K-08 | 1/2 | 1.065 | 15,950 | 40,000 | 9.00 | 0.90 | WBS08-08MP-16K | WBF16K-08 |
| MWHWB20K-08 | 1/2 | 1.225 | 20,000 | 50,000 | 11.90 | 1.52 | WBS08-08MP-16K | WBF20K-08 |
