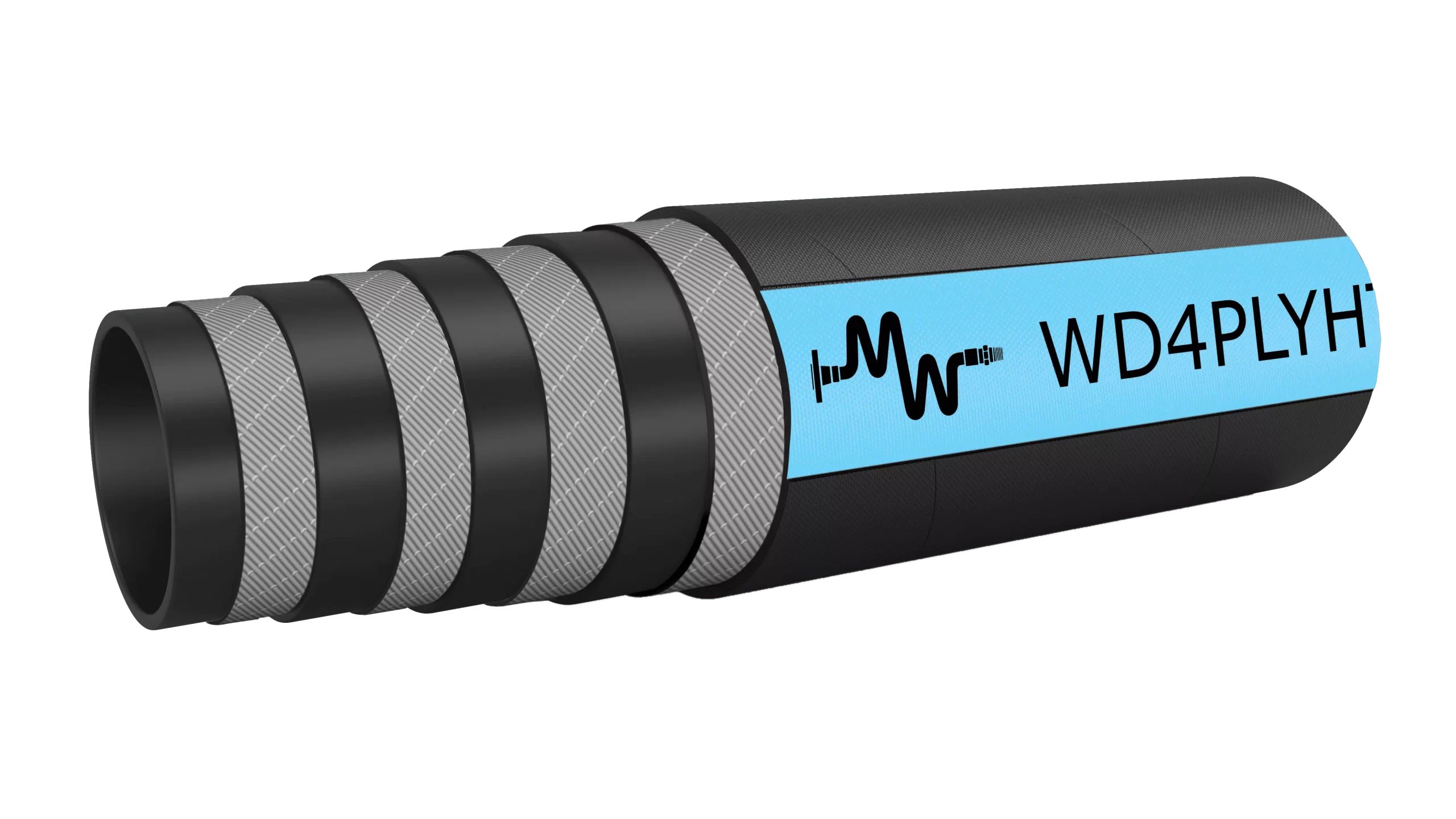

WD4PLYHT
Specs
Tube:
0.126″ thick special black peroxide cured EPDM tube
Cover:
Black EPDM cover, resistant to heat, abrasion, weather conditions and ozone
Reinforcement:
High tensile 4 plies of synthetic textile yarns
Temp. Range:
-40° to + 300°F
| Part # | ID | OD | Max WP | Min BP | Weight | Length |
|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | LBS/FT | FEET | |
| 2 | 2.559 | 232 | 725 | 0.97 | up to 200 | |
| 4 | 4.606 | 232 | 725 | 1.92 | up to 200 |
