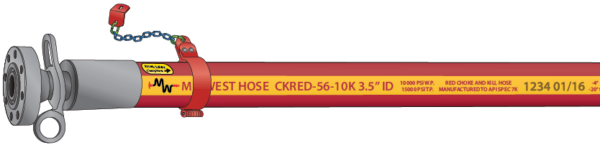

Choke & Kill Red Hose
Applications & Features
Designed for burner, test, acidizing, cementing, fracking, high pressure jetting, and H2S operations. Used as a flexible connection (instead of pipe) between the riser and manifold or around the ball joint of offshore drillings rigs.
Specs
Tube:
Special Nitrile Blend
Cover:
Synthetic rubber with impregnated fiberglass. Spiral wrap recommended for abrasion resistance. Fire resistant cover of Red Choke & Kill is less abrasion resistant than rotary hose.
Reinforcement:
4, 6, or 8 steel wire spiral layers
Temp. Range:
-4° to 200°F
| Part # | ID | OD | Max WP | Test Pressure | Bend Radius in WP | Bend Radius in Storage | Weight | Weight |
|---|---|---|---|---|---|---|---|---|
| INCH | INCH | PSI | PSI | INCH | INCH | LBS/FT | COUPLING | |
| CKRED5K-32 | 2 | 3.75 | 5,000 | 7,500 | 36 | 30 | 9.76 | 55 |
| CKRED5K-48 | 3 | 4.97 | 5,000 | 7,500 | 36 | 30 | 14.4 | 117 |
| CKRED5K-56 | 3-1/2 | 5.48 | 5,000 | 7,500 | 54 | 30 | 16.1 | 151 |
| CKRED5K-64 | 4 | 6.35 | 5,000 | 7,500 | 60 | 30 | 24.7 | 168 |
| CKRED10K-32 | 2 | 4.02 | 10,000 | 15,000 | 48 | 30 | 13.53 | 58 |
| CKRED10K-48 | 3 | 5.39 | 10,000 | 15,000 | 48 | 30 | 21.8 | 126 |
| CKRED10K-56 | 3-1/2 | 5.90 | 10,000 | 15,000 | 64 | 30 | 23.9 | 171 |
| CKRED10K-64 | 4 | 6.82 | 10,000 | 15,000 | 72 | 30 | 26.4 | 188 |
